A New Option for Treating Oily Wastewater at Frame factory: Horizontal Oil-Water Separators Achieve Chemical-Free Physical Oil Removal

Machining, degreasing, and cleaning operations in vehicle frame manufacturing generate substantial volumes of oily wastewater. Characterized by its complex composition—containing free oil, dispersed oil, and trace amounts of emulsified oil—this wastewater poses significant challenges; if not properly managed, it increases environmental compliance burdens and squanders valuable resources. In light of increasingly stringent environmental regulations and the inherent imperative to reduce costs while enhancing efficiency, the selection of oil-removal equipment that is highly efficient, cost-effective, and free of secondary pollution has emerged as a key priority for vehicle frame manufacturing facilities.

Characteristics of Oil-Bearing Wastewater from Vehicle Frame Manufacturing Plants

This wastewater comes primarily from cutting fluid leaks, equipment cleaning, and floor washing. Key characteristics include:

Oil content consists predominantly of free oil and dispersed oil, accompanied by small amounts of emulsified oil and trace amounts of dissolved oil.

The oil content exhibits significant fluctuations.

The wastewater contains small quantities of suspended particulate matter; the water temperature is ambient, and the pH is neutral to slightly acidic.

Traditional oil separators require large footprints and deliver low efficiency. Air flotation systems demand demulsifiers and flocculants—driving up operating costs and generating chemical sludge. Hydro-cyclones, while effective for high oil concentrations, struggle with fine droplets. Consequently, vehicle frame manufacturing plants are in urgent need of an efficient, economical, and environmentally friendly oil removal technology.

Horizontal Oil-Water Separator: A Breakthrough in Physical Oil Removal Technology

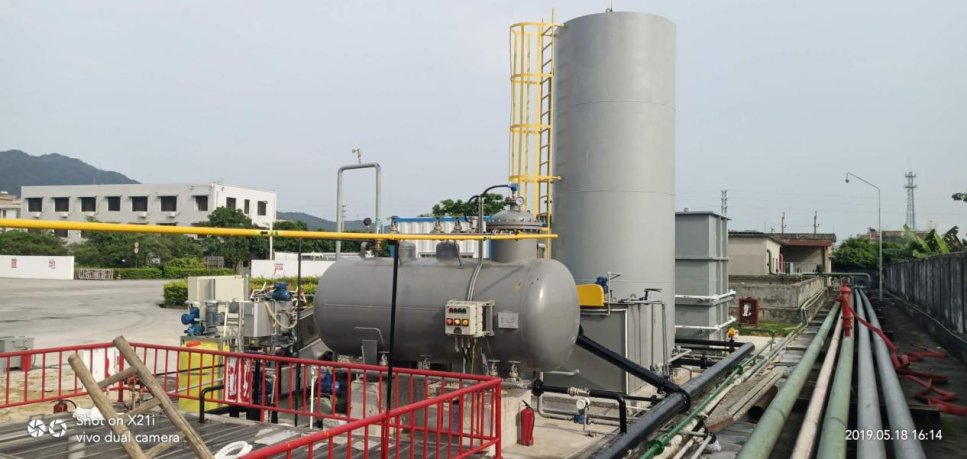

Qingdao Brator’s WYS Horizontal Oil-Water Separator uses a combined process of cyclonic separation and coarse coalescence. This purely physical method requires no chemical additives—eliminating secondary pollution at the source. Integrating high efficiency, a compact structure, and a high degree of automation, this equipment is specifically designed to treat oily wastewater containing free oil, dispersed oil, and certain types of emulsified oil.

Three-Stage Separation: Progressive Purification

Stage 1: Cyclonic Pre-Separation

Upon entering the equipment, the oil-bearing wastewater first passes through a specialized Hydro-cyclone separator. By harnessing the centrifugal force field generated by the density difference between oil and water, this stage rapidly separates free oil and large-diameter dispersed oil droplets. The separation rate is dozens of times faster than traditional gravity settling, significantly reducing the load on downstream processing stages. The cyclonic chamber features a flow-field design optimized via CFD (Computational Fluid Dynamics), offering robust resistance to fluctuations in flow rate and concentration—a critical capability for adapting to the highly variable wastewater quality typical of vehicle frame factory.

Stage 2: Stainless Steel Coarse Coalescence

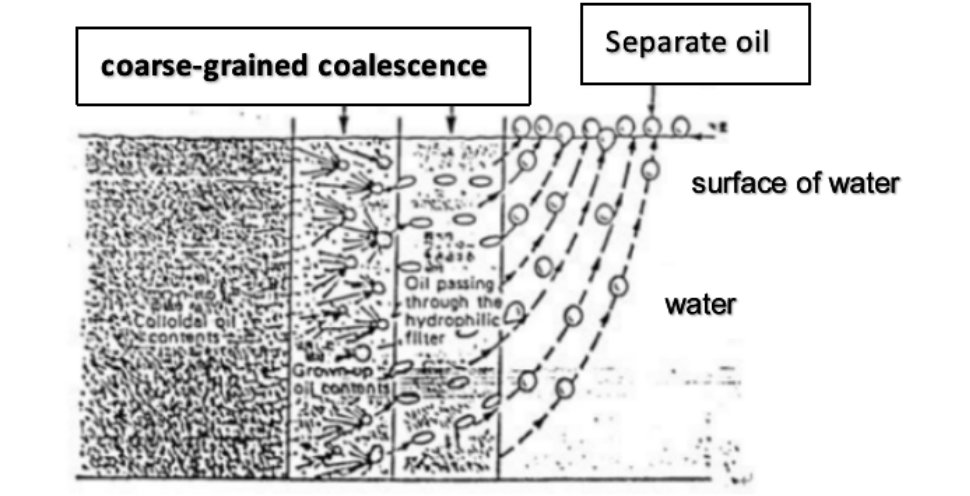

The preliminarily separated wastewater then flows into a stainless steel spiral-mesh coarse coalescing filter element. This filter element undergoes a special surface modification treatment to endow it with superior oleophilic (oil-attracting) properties; it effectively captures oil droplets larger than 20 μm, promotes their coalescence and growth, and accelerates the stratification of the oil and water phases. The filter element is characterized by high flux, low pressure drop, strong resistance to clogging, and a long service life.

Stage 3: Polymer Fine Separation

This stage employs coalescing filter elements fabricated from a proprietary, self-developed polymer material that is oleophilic yet hydrophobic (water-repelling). These elements serve to further capture minute oil droplets ranging from 10 to 20 μm in size, as well as a portion of the emulsified oil. Through the synergistic action of these two filtration stages, the system ensures that the oil content in the effluent remains consistently below 50 mg/L (excluding emulsified and dissolved oils), thereby meeting the specific inlet requirements for subsequent treatment processes or complying directly with discharge standards.

Core Advantages: Empowering Green Production

Zero Chemical Additives, Low Operating Costs:

The entire process relies solely on physical separation; no demulsifiers or flocculants are introduced, resulting in zero chemical costs. The core separation stage features no high-energy-consuming rotating components; primary energy consumption is limited to overcoming flow resistance and powering instrumentation, resulting in extremely low overall operating costs.

Automated Operation, Unmanned Monitoring:

The equipment is equipped with a PLC-based automatic control system and high-precision oil-level sensors, enabling the automated identification, collection, and discharge of waste oil. Its fully enclosed design prevents VOC emissions, thereby ensuring both site safety and environmental compliance.

Resilience to Shock Loads, High Adaptability:

The equipment operates stably even under conditions involving significant fluctuations in influent oil content. The cyclonic separation units are tolerant of flow rate variations, while the coalescing filter elements maintain stable performance, effectively adapting to the varying wastewater quality typical of automotive body manufacturing plants.

Resource Recovery, Significant Economic Benefits:

Recovered oil has low water content (≤10%) and high purity, making it suitable for direct reuse as supplemental fuel or for external sale—turning waste into profit.

Skid-Mounted Design, Easy Installation:

The equipment features a modular, skid-mounted design; all manufacturing and testing are completed at the factory. On-site commissioning requires only the connection of pipelines and electrical cables, significantly shortening the construction timeline. The main structural components are constructed from corrosion-resistant carbon steel, while internal components utilize SUS304 stainless steel, ensuring long-term, stable operation.

Application Value in Vehicle Frame Manufacturing Plants

Flexible Processing Capacity: A single unit possesses the processing capacity to meet the typical water volume requirements of a frame factory; alternatively, multiple units can be operated in parallel to accommodate larger-scale demands.

Adaptability to Fluctuating Water Quality: The cyclonic separation unit demonstrates robust resistance to shock loads; even if the oil content in the influent water experiences a temporary spike, the effluent quality remains stable and consistently meets regulatory standards.

Simplified Maintenance: The system is free of failure-prone components—such as oil skimmers—and routine maintenance is limited to periodic monitoring of the filter element's differential pressure. The filter elements feature extended service lifespans, thereby significantly reducing manual maintenance costs.

Compliance with Environmental Regulations: Utilizing physical separation, the system generates no secondary pollution; furthermore, its fully enclosed operation prevents the emission of waste gases, thereby assisting enterprises in successfully passing environmental inspections.

Conclusion

The green transformation of frame manufacturing relies inextricably upon efficient and reliable environmental protection equipment. Centered on physical oil removal technology, Qingdao Brator’s Horizontal Oil-Water Separator provides frame factory with a low-cost, high-efficiency, and chemical-free solution for treating oily wastewater, thereby empowering enterprises to achieve the dual objectives of environmental compliance and resource recovery. Choose Brator: simpler oil removal, greener production.

Innovative Physical Oil Removal: Protecting Our Green Waters and Lush Mountains.
