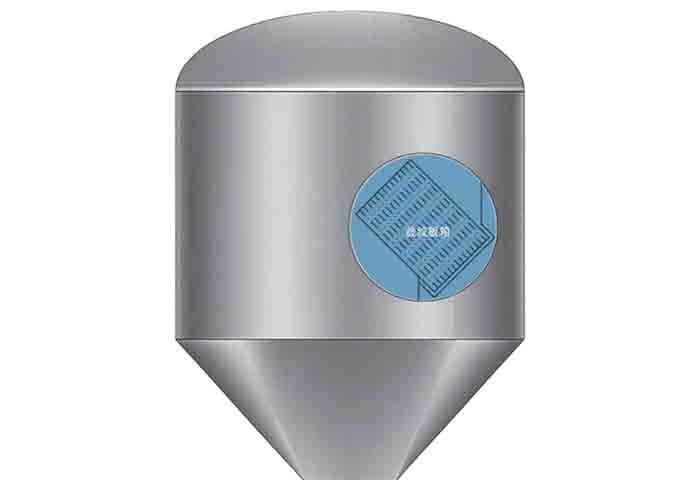

Corrugated Plate Assembly

As the core unit of the terminal oil-water separator, the corrugated plate assembly has a very flexible application scenario: it can be integrated with the reaction equipment as an integrated device for the pretreatment of oily wastewater in oil fields, petrochemical plants, mines, ports and docks; or it can be installed directly in the on-site pool or tank as an independent unit, mainly suitable for the pretreatment of oily wastewater in coal chemical industry.

INQUIRY NOW

Equipment Overview

As the core unit of the terminal oil-water separator, the corrugated plate assembly has highly flexible application scenarios: it can be integrated with reaction equipment as a single unit for the pretreatment of oily wastewater in oil fields, petrochemical plants, mines, and ports; or it can be installed directly in on-site pools or tanks as an independent unit, mainly suitable for the pretreatment of oily wastewater from coal chemical plants. This assembly transforms micron-sized oil droplets into larger, floatable oil droplets through four continuous processes: forced collision, material adsorption, coalescence growth, and rapid flotation. Then, it utilizes shallow pool sedimentation theory to achieve rapid oil-water separation.

Application Scope

Oil and petrochemical industries: oilfield produced water, storage tank water removal, oily wastewater from refining and chemical plants, and oil and suspended solids removal from drilling wastewater;

Coal chemical industry: coal gasification wastewater, shift conversion wastewater, etc.;

Marine Engineering: Treatment of bilge water, oily wastewater at docks, and production water from offshore platforms

Technical Features

Modular Design: Factory prefabrication and on-site hoisting,drawer-type structure supports individual unit removal for maintenance, making installation and upkeep more convenient.

Specialized Anti-clogging Materials: Utilizes oleophilic and hydrophobic modified materials, allowing oil droplets to easily coalesce and desorb, with excellent self-cleaning properties.

Structural Short-Circuit Prevention: Optimized tilt angle and flow channel design ensure oil floats and sludge slides down, resulting in uniform water distribution without dead zones.

High Efficiency and Compactness - Space Saving: Unit processing capacity is 3-5 times that of traditional grease traps, while requiring only 1/4-1/5 of the floor space.

Superior Adaptability - Handles Complex Working Conditions: Resistant to corrosion from coal tar, phenolic water, and sulfur-containing wastewater.
