A Revolution in Oilfield Wastewater Treatment: How CPI Coalescing Separators Deliver Zero-Chemical, Positive-Return Performance

Oilfield wastewater—generated during the extraction and processing of oil and gas—is difficult to treat due to its complex and variable composition. The primary characteristics of oilfield wastewater can be summarized in the following aspects:

I. Complex Water Composition and Diverse Pollutants

Oilfield wastewater is not a single-component substance but rather a mixture of effluents from various sources, typically comprising:

Produced Water: Oilfield wastewater—generated during the extraction and processing of oil and gas—is notoriously difficult to treat due to its complex and variable composition.

 Operational Wastewater: Includes fracturing flowback fluids and well intervention fluids, often laden with chemical additives.

As a result, the wastewater carries not only crude oil but also formation solids, dissolved salts, residual chemicals (e.g., demulsifiers, friction reducers), and microorganisms.

II. Diverse Forms of Oil and Varying Treatment Difficulties

This constitutes the most fundamental characteristic of oilfield wastewater; the physical state of the oil dictates the treatment approach and its complexity. It is primarily categorized into four types:

Free Oil (>100 μm): Forms a continuous oil film on the water surface and is readily removed by gravity separation—the primary target for conventional separators and coalescers.

Dispersed Oil: With droplet sizes ranging from 10 to 100 microns, it exists as tiny oil droplets dispersed and suspended within the water. Under static or laminar flow conditions, these droplets may naturally coalesce or float to the surface. High-efficiency coalescing technologies (such as parallel plate separators and high-efficiency coalescing oil-water separators) effectively remove dispersed oil droplets as small as 10–60 microns by increasing the opportunities for droplet collision and coalescence.

Emulsified Oil: Typically characterized by droplet sizes smaller than 10 microns, it forms a stable emulsion—often due to the presence of surfactants or intense agitation—in which the oil droplets carry surface charges, making them difficult to remove via conventional gravity separation. Treating emulsified oil necessitates a demulsification step, such as pH adjustment, the addition of chemical demulsifiers, or the application of specialized demulsification and coalescing membrane technologies.

Dissolved Oil: Existing in a molecular state dissolved within the water, its concentration is typically very low (approximately 5–15 mg/L). It cannot be removed through physical methods and requires advanced treatment processes—such as adsorption, advanced oxidation, or biodegradation—for effective removal. The oil content in typical oilfield wastewater (such as water drawn from large mixed-liquid storage tanks, fracturing flowback fluid, etc.) primarily consists of free oil, dispersed oil, and emulsified oil, accompanied by small amounts of dissolved oil.

III. High Suspended Solids (SS) Content

Oilfield wastewater carries high levels of suspended solids (SS)—sand, clay, and corrosion byproducts—which introduce several operational challenges:

(1) Clogging: Solids can plug coalescing media, blind filters, and obstruct plate pack channels.

(2) Compromised Separation Efficiency: Solid particles may interact with oil droplets to form more stable, complex contaminants.

(3) Increased Sludge Generation: Regardless of whether physical separation or chemical flocculation methods are employed, high SS levels significantly increase sludge production and associated treatment costs.

IV. Significant Fluctuations in Water Quality and Flow Rate

Flow Rate Fluctuations: Due to the intermittent nature of production operations (e.g., periodic flushing, fracturing operations), wastewater flow rates can experience drastic fluctuations. Sudden surges in flow can severely impair separator performance; even brief fluctuations may have a detrimental impact.

Water Quality Fluctuations: Oil content, salinity, and chemical residuals vary widely across wells and production phases. Though normally ≤500 mg/L, oil can spike to 1500 mg/L during upsets—demanding robust shock-load tolerance from treatment systems.

V. Potential Presence of Specialized Contaminants

High Temperature: Some produced water streams exhibit elevated temperatures.

High Mineralization: The water contains high concentrations of ions such as Ca²⁺, Mg²⁺, SO₄²⁻, and Cl⁻, which promote scale formation and render the fluid highly corrosive.

Dissolved Gases: The water may contain acidic gases—such as H₂S and CO₂—which exacerbate corrosion and increase treatment complexity.

Residual Chemicals: Substances such as polymers and surfactants may be present, potentially intensifying emulsification and interfering with subsequent biochemical treatment processes.

VI. Prominent Conflicts Between Treatment Objectives and Economic Feasibility

Increasingly Stringent Environmental Regulations: Standards governing wastewater discharge or reinjection are imposing ever-higher requirements regarding the permissible levels of oil and suspended solids.

Addressing Cost Pressures: Traditional high-efficiency processes (such as Dissolved Air Flotation) suffer from three major cost-related pain points: high electricity consumption, high chemical reagent costs, and the difficulty of disposing of hazardous sludge. Traditional DAF (dissolved air flotation) carries operating costs of ~¥0.59/ton, while high-efficiency physical coalescence costs just ¥0.10/ton——and can even generate a net economic benefit through the recovery of waste oil.

Resource Recovery Imperatives:The crude oil present in wastewater possesses significant recovery value. An ideal treatment process should not only ensure compliance with discharge standards but also facilitate the recovery and monetization of waste oil, thereby transforming the treatment facility from a "cost center" into a "profit center."

VII. Summary and Implications for Process Selection

Based on the characteristics outlined above, the core objective of oilfield wastewater pretreatment is to remove floating and dispersed oil efficiently and cost-effectively, while simultaneously minimizing emulsification and maintaining operational resilience against high Suspended Solids (SS) concentrations and flow rate fluctuations.

Traditional oil separators** suffer from low efficiency and large spatial footprints, making it difficult for them to consistently meet modern discharge standards (e.g., effluent oil concentrations ≤ 150 mg/L).

Dissolved Air Flotation (DAF)**, while capable of treating dispersed oil and a portion of emulsified oil, faces significant challenges regarding high operating costs and the generation of hazardous sludge.

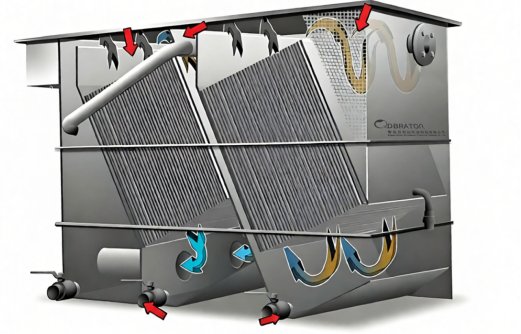

Enhanced gravity separation technologies—such as the CPI High-Efficiency Coalescing Oil-Water Separator—which integrate shallow-tank theory with advanced coalescing coating technologies, have emerged as the preferred solution for treating oilfield wastewater characterized by high oil content and high concentrations of suspended solids.

A Breakthrough in Principle: From "Passive Settling" to "Active Coalescence"

Traditional gravity separation relies on the density difference between oil and water; however, the oil droplets in oilfield wastewater typically range in size from 10 to 100 μm, resulting in an extremely slow natural settling rate (according to Stokes' Law, a 50 μm oil droplet in water at 20°C settles at a mere 0.2 mm/s). The High-Efficiency Coalescence Separator achieves a quantum leap in efficiency through the following innovations:

Surface Modification Technology for Coalescence Plates: Utilizing a patented oleophilic and hydrophobic coating, the surface of the coalescence plates actively captures minute oil droplets and promotes their aggregation through intermolecular forces.

Multi-Layer Shallow-Tank Design: Applying Hazen's theory, the separation zone is divided into closely spaced plate layers (typically 15–50 mm apart, project-specific). This slashes the droplet rise distance, dramatically accelerating separation.

Fully Enclosed, Explosion-Proof Design: Completely eliminates the escape of VOCs (Volatile Organic Compounds) and complies with the GB3836-2010 standard for electrical equipment in explosive atmospheres.

Through purely physical means—requiring zero chemical additives and consuming minimal electricity—this system achieves the three-phase separation and resource recovery of oil, water, and sludge while effectively handling shock loads. This approach precisely addresses the core requirement of oilfield wastewater treatment: "cost reduction and efficiency enhancement."

Conclusion:

The technological upgrading of oilfield wastewater treatment is never merely a simple replacement of equipment; rather, it represents a redefinition of the relationship between "people, technology, and the environment." When technology truly centers on "cost reduction and efficiency enhancement"—and when design fully respects the inherent characteristics of oilfields (namely, their remote locations, high operational volatility, and high cost structures)—environmental compliance ceases to be a burden and instead becomes the starting point for value creation.

If you are an environmental manager at an oilfield, currently grappling with stubbornly high treatment costs; if you represent an engineering firm seeking a breakthrough in the exploration of differentiated technical solutions; or if you are simply interested in the commercial value embedded within environmental technologies—reach out to Qingdao Brator. We are dedicated to providing you with expert technical support.
